FBE Coated Steel Pipe | Fusion Bonded Epoxy Anti-Corrosion Pipe

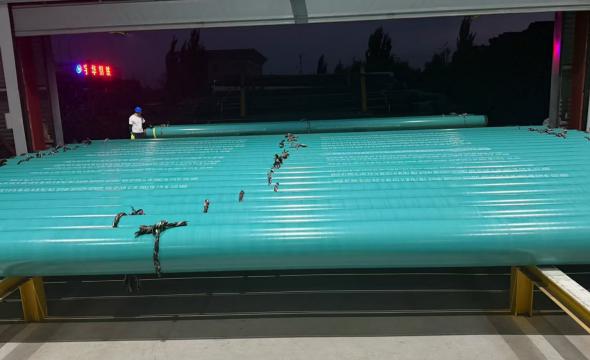

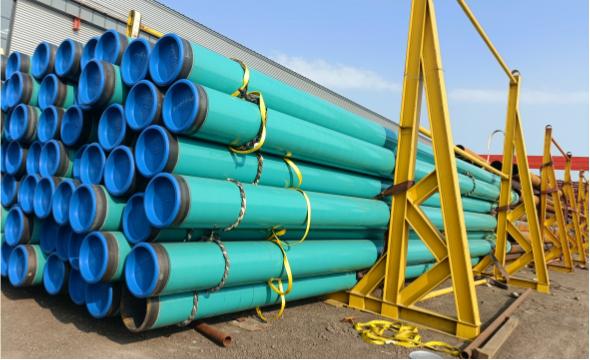

FBE (Fusion Bonded Epoxy) coated steel pipe is a professional high-grade anti-corrosion steel pipe specially developed for harsh corrosive environments, widely recognized as one of the most reliable long-term anti-corrosion solutions for global oil, gas, chemical and underground

With excellent insulation performance, strong cathodic disbonding resistance, stable high-temperature resistance and superior soil stress resistance, FBE coating has become one of the most reliable anti-corrosion systems for buried and exposed pipelines. We supply both single-layer FBE and double-layer FBE structures, matched with seamless, ERW, SSAW and LSAW base pipes to meet different pressure, temperature and buried environment requirements.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Technical Performance Parameters

Product Detail

Product Name:

FBE Coated Steel Pipe | Fusion Bonded Epoxy Anti-Corrosion Pipe

Standard:

ISO 21809-2, AWWA C213, CAN/CSA Z245.20, NACE SP0394, DIN 30670

Grade:

Thickness:

Single-layer 300-500μm;Double-layer 600μm – 1000μm

Shape:

Round

Outer Diameter:

Ф114.3 – 406 mm

Place of Origin:

Inner Mongolia, China

Usage:

Cost-effective, stable performance, suitable for conventional oil, gas and water transmission pipelines

Surface Treatment:

Hot Rolled

Tolerance:

WT: -12.5%

End:

Plain

End Protector:

HDPE crash cap or customized

length:

R1, R2, R3

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Technical Performance Parameters

Performance Item	Standard Result
Adhesion Strength	≥ 5MPa
Dielectric Strength	High insulation, no electric leakage
Cathodic Disbonding Resistance	Excellent, minimal stripping radius
Continuous Service Temperature	-40°C ~ 110°C
Water Absorption Rate	Ultra-low, effectively isolating moisture

Core Advantages of FBE Coating

Strong Adhesion: Molecular fusion bonding, no peeling, no hollowing, long service life

Excellent Anti-Corrosion Performance: Resists acid, alkali, salt water and soil corrosion

High Insulation: Low cathodic protection current consumption, saving project operation cost

Wide Temperature Adaptability: Service range from -40°C to 110°C

Environmentally Friendly: No solvent volatilization, non-toxic, compliant with international environmental standards

Uniform & Compact Layer: No pinholes, complete coverage even on weld seams

Production Process

Strict production flow guarantees stable coating quality: Steel pipe surface shot blasting & cleaning → Precisely preheating to 200–250°C → Electrostatic epoxy powder spraying → High-temperature fusion curing → Cooling & surface inspection → Thickness testing → Holiday detection → Finished product packaging.
