34Mn2V Gas Cylinder Tube

Cylinder tube, Seamless Pipe

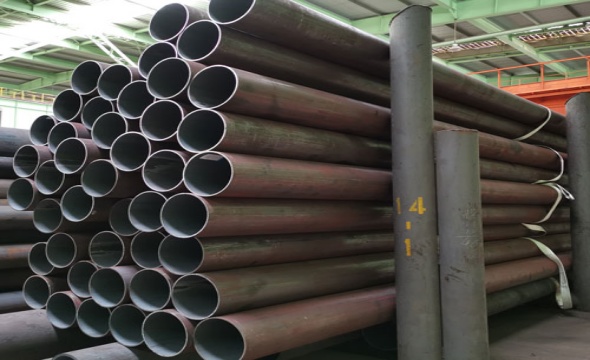

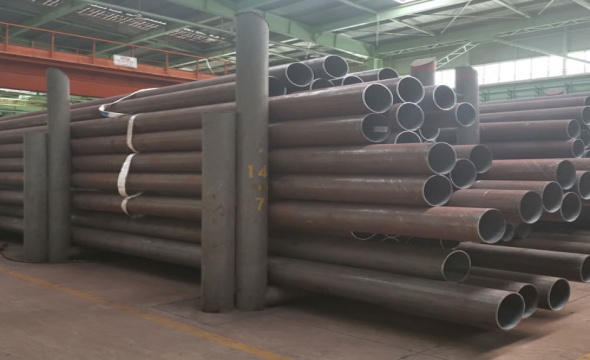

34Mn2V Gas Cylinder Tube

GB/T 18248-2008 governs the production of 34Mn2V gas cylinder tubes. Manufacturers utilize these tubes mainly for industrial oxygen cylinders, nitrogen gas cylinders, and medical gas cylinders.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Chemical Component

Product Detail

Product Name:

34Mn2V Gas Cylinder Tube

Standard:

GB 18248/EN 10297/EN 10083-3

Grade:

34Mn2V

Thickness:

3.5-20 mm

Section Shape:

Round

Outer Diameter:

70mm-400mm

Place of Origin:

Baotou, China(Mainland)

Usage:

Industrial Oxygen Cylinders, Nitrogen Gas Cylinders, and Medical Gas Cylinders

Surface Treatment:

Hot Rolled

Tolerance:

OD: ±1% WT: 0.9mm

End:

Plain,beveled,cutting,threading.flange or customized

End Protector:

Plastic caps Anti-corrosion coating

length:

4m-12m(customized)

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Chemical Component (GB/T 18248)

Grade	C	Si	Mn	P	S	P+S	Cr	V	Ni	Cu
37Mn	0.30～0.37	0.17～0.37	1.40~1.75	≤0.020	≤0.020	≤0.030	≤0.30	0.07~0.12	≤0.30	≤0.20

Mechanical Performance (GB/T 18248)

Grade	Tensile strength Rm	Yield strength YS	Elongation A(％)
37Mn	≥743Mpa	≥530Mpa	≥16
