Turkmenistan possesses some of the most severe solar conditions in Central Asia, with vast desert landscapes like the Karakum receiving intense sunshine nearly year-round.

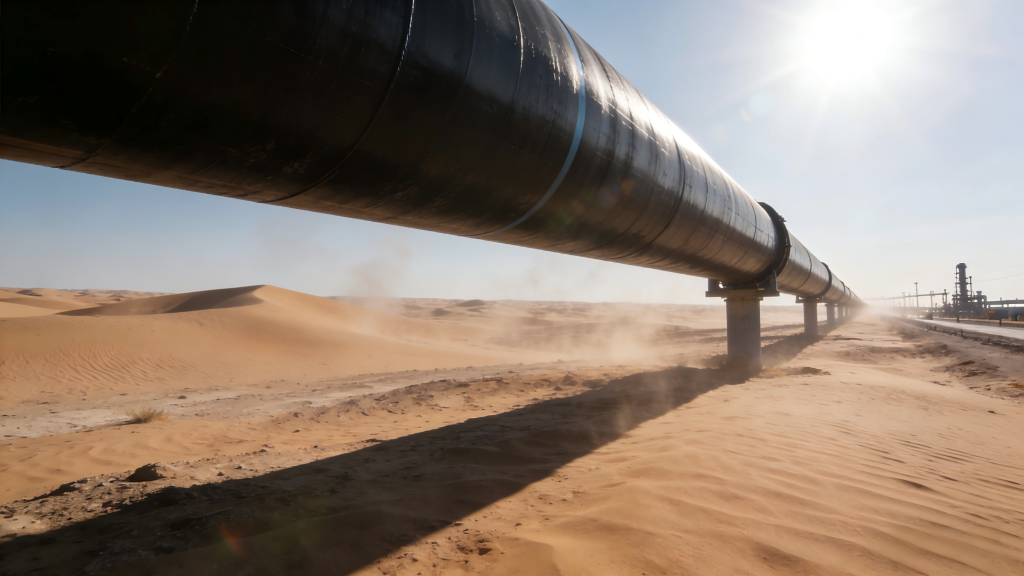

While Three-Layer Polyethylene (3PE) is the undisputed standard for corrosion protection of buried pipelines due to its excellent dielectric properties and mechanical strength, significant challenges arise when 3PE coated pipes are used for above-ground sections (such as risers, valve stations, river crossings, or during prolonged storage before burial).
This article examines the impact of Turkmenistan’s high UV environment on 3PE coatings and how to ensure long-term integrity.
The Problem: Polyethylene vs. UV Radiation
The outer layer of a 3PE system is high-density polyethylene (HDPE). In its pure form, polyethylene is highly susceptible to degradation by Ultraviolet (UV) radiation from sunlight.
When exposed to intense sunlight over time, UV photons break the polymer chains in the polyethylene. This process, known as photo-oxidation, leads to:
- Chalking/Discoloration:The surface turns whitish or grayish.
- Embrittlement:The coating loses its flexibility and impact resistance.
- Micro-cracking:Eventually, deep cracks form, allowing moisture to penetrate down to the FBE primer and the steel substrate, compromising the entire corrosion protection system.
In the intense solar climate of Turkmenistan, standard, unprotected polyethylene can show significant degradation in as little as 12 to 24 months.
The Solution: Carbon Black Stabilization
To make 3PE suitable for any above-ground exposure, the polyethylene top layer must be UV-stabilized.
The industry standard method for achieving this is the addition of Carbon Black. Carbon black acts as a powerful UV absorber, preventing the radiation from penetrating deep into the polymer matrix and breaking the chemical bonds.
Crucial Considerations for the Turkmen Market:
- Concentration Matters:For standard buried pipes, a carbon black content of around 2% is common. However, for prolonged above-ground exposure in Turkmenistan, this may be insufficient. Specifications should ensure a well-dispersed carbon black content of at least 2.0% to 2.5%, and the carbon black used must be of a high grade specifically designed for UV stabilization.
- The “Black” Fallacy:Just because a pipe looks black doesn’t mean it is UV resistant. Cheap pigments can mimic the color without providing the protection of proper carbon black.
Recommendations for Above-Ground Sections in Turkmenistan
If your project involves above-ground 3PE sections in Turkmenistan, standard specifications regarding buried pipes are inadequate.
- Specification is Key:
Do not assume standard 3PE is UV resistant. When ordering pipes that will have above-ground sections, explicitly state the requirement for enhanced UV stabilization in the top PE layer suitable for desert environments.
- Additional Protection (The Best Practice):
Even well-stabilized 3PE will eventually degrade under the relentless Turkmen sun over decades. For permanent above-ground installations, the best practice is to apply an additional barrier layer on site over the 3PE. This is typically a UV-resistant polyurethane or acrylic topcoat painted over the section exposed to sunlight. This sacrificial layer protects the vital 3PE coating underneath.
- Minimize Storage Time:
Pipe stored in outdoor yards in regions like Mary or Turkmenbashi should be covered or buried as quickly as possible to minimize pre-installation UV damage.
Conclusion:
While 3PE is an excellent coating, its Achilles’ heel is UV radiation. In Turkmenistan’s harsh climate, using standard buried-grade 3PE for above-ground sections is a significant risk. Ensuring high-quality carbon black stabilization or applying an additional UV-resistant paint layer is essential for long-term asset protection.
