OCTG Casing API 5CT K55 Oil Gas Pipe

Casing

OCTG Casing API 5CT K55 Oil Gas Pipe

IMRI 5CT K55 casing is a high security piping system designed for oil and gas wells. With excellent corrosion resistance and mechanical strength, it is mainly used in downhole oil and gas wells, providing reliable sealing and support for oil and gas extraction.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Chemical Component

Product Detail

Product Name:

OCTG Casing API 5CT K55 Oil Gas Pipe

Standard:

API 5CT / API 5B

Grade:

K55

Thickness:

3.5-60mm

Shape:

Round

Outer Diameter:

Ф114.3 – 406 mm

Place of Origin:

Inner Mongolia, China

Usage:

Transportation of oil and gas

Surface Treatment:

Hot Rolled

Tolerance:

WT: -12.5% / +15%

End:

Plain

End Protector:

HDPE crash cap or customized

length:

R1, R2, R3

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Chemical Component(API 5CT)

Grade

Min

Max

Min

Max

Min

Max

Min

Max

K55

–

0.030

Mechanical Property(API 5CT)

Grade

Type

Total under load

Elongation

Yield strength

megapascal

Tensile strength

megapascal

Hardness a, C

Maximum

Specified

Allowable hardness

Variation

Min

Max

Min

HRC

HBW

HRC

K55

–

0.5

379

552

655

–

Case:

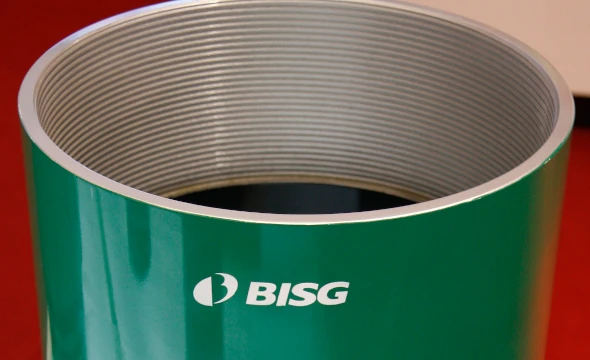

Our K55 oil casing is designed for medium to deep wells from 2000-3500m, with LC long round button threads for safe isolation from high pressure layers and economical completion solutions in ≤100ppm H₂S micro-sulfur environments. It has been successfully applied in China’s Changqing Surig gas field and Sichuan Basin shale gas project, and participated in international energy projects such as Delta high temperature sulfur gas wells in Egypt’s Nile River and Venezuela’s Orinoco ultra-thick oil thermal recovery, guaranteeing the integrity of the wellbore with cost-effective solutions.
