H2S Resistant API 5CT N80Q Casing Tube

Casing, Tubing & Casing Pipe

H2S Resistant API 5CT N80Q Casing Tube

IMRI’s API 5CT N80Q casing is the best choice for the rigors of oil and gas wells due to its superior strength and reliability. The BTC threaded connection ensures a tight and stable seal to prevent fluid leakage.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Chemical Component

Product Detail

Product Name:

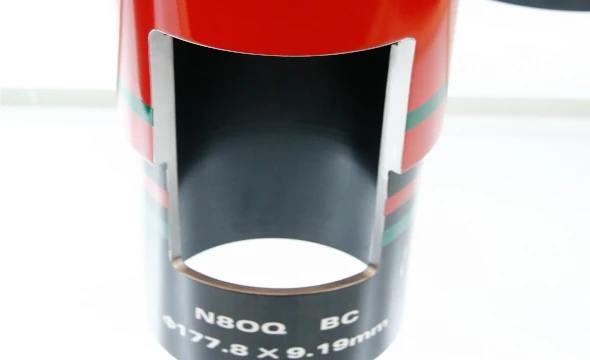

API 5CT BTC Thread N80Q Casing Tube

Standard:

API 5CT / API 5B

Grade:

N80Q

Thickness:

3.5-60mm

Shape:

Round

Outer Diameter:

Ф114.3 – 406 mm

Place of Origin:

Inner Mongolia, China

Usage:

Structural Support; Wellbore Protection

Surface Treatment:

Hot Rolled

Tolerance:

WT: -12.5%

End:

Plain

End Protector:

HDPE crash cap or customized

length:

R1, R2, R3

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Chemical Component(API 5CT)

Grade

Min

Max

Min

Max

Min

Max

Min

Max

N80Q

一

0.030

一

Mechanical Property(API 5CT)

Grade

Type

Total under load

Elongation

Yield strength

megapascal

Tensile strength

megapascal

Hardness a, C

Maximum

Specified

Allowable hardness

Variation

Min

Max

Min

HRC

HBW

HRC

N80

0.5

552

758

689

–

Case:

IMRI’s API 5CT N80Q casing is specially designed for deep wells in sour environment (H₂S ≤ 30ppm, CO₂ ≤ 0.15MPa), with yield strength of 758-965MPa, and certified by NACE MR0175 for sulfur resistance. Successfully applied in Tarim ultra-deep sulfur wells (Φ244.5), Chuannan shale gas fracturing wells (Φ177.8mm) and Hassi Messaoud in Algeria, which accord with the requirements of ISO 15156-2/API TR 5C3 severe working conditions.
