FBE Coated Steel Pipe Fusion Bonded Epoxy Pipeline Corrosion Protection

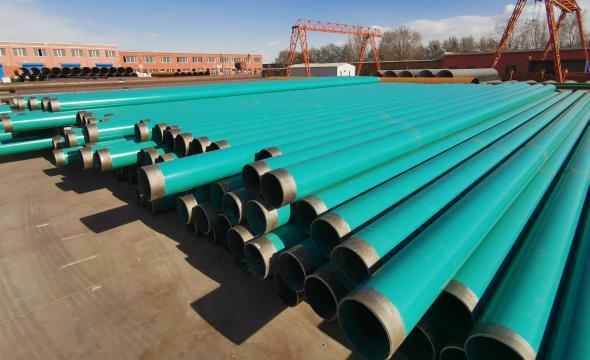

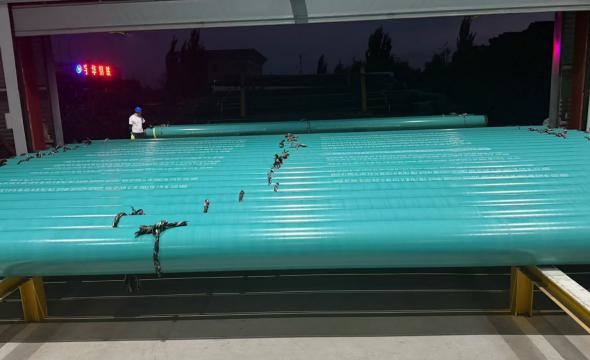

FBE (Fusion Bonded Epoxy) coated steel pipe is a thermosetting powder-coated pipeline solution designed for extreme industrial corrosion challenges. Different from conventional liquid coating systems, FBE coating forms an integral, seamless protective film that tightly bonds with the steel substrate at high temperature, delivering exceptional durability and structural stability in long-term pipeline operation.

Known for its ultra-low water absorption, superior chemical inertness, and excellent resistance to acid, alkali, salt and microbial corrosion, FBE coated pipe performs steadily in wet soil, marine environments and high-temperature industrial conditions. Its flexible yet rigid coating structure effectively resists cracking, peeling and mechanical damage during pipeline installation, bending and buried settlement.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Technical Performance Parameters

Product Detail

Product Name:

FBE Coated Steel Pipe | Fusion Bonded Epoxy Anti-Corrosion Pipe

Standard:

ISO 21809-2, AWWA C213, CAN/CSA Z245.20, NACE SP0394, DIN 30670

Grade:

Thickness:

Single-layer 300-500μm;Double-layer 600μm – 1000μm

Shape:

Round

Outer Diameter:

Ф114.3 – 406 mm

Place of Origin:

Inner Mongolia, China

Usage:

Cost-effective, stable performance, suitable for conventional oil, gas and water transmission pipelines

Surface Treatment:

Hot Rolled

Tolerance:

WT: -12.5%

End:

Plain

End Protector:

HDPE crash cap or customized

length:

R1, R2, R3

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Technical Performance Parameters

Performance Item	Standard Result
Adhesion Strength	≥ 5MPa
Dielectric Strength	High insulation, no electric leakage
Cathodic Disbonding Resistance	Excellent, minimal stripping radius
Continuous Service Temperature	-40°C ~ 110°C
Water Absorption Rate	Ultra-low, effectively isolating moisture

Core Advantages of FBE Coating

Strong Adhesion: Molecular fusion bonding, no peeling, no hollowing, long service life

Excellent Anti-Corrosion Performance: Resists acid, alkali, salt water and soil corrosion

High Insulation: Low cathodic protection current consumption, saving project operation cost

Wide Temperature Adaptability: Service range from -40°C to 110°C

Environmentally Friendly: No solvent volatilization, non-toxic, compliant with international environmental standards

Uniform & Compact Layer: No pinholes, complete coverage even on weld seams

Production Process

Strict production flow guarantees stable coating quality: Steel pipe surface shot blasting & cleaning → Precisely preheating to 200–250°C → Electrostatic epoxy powder spraying → High-temperature fusion curing → Cooling & surface inspection → Thickness testing → Holiday detection → Finished product packaging.
