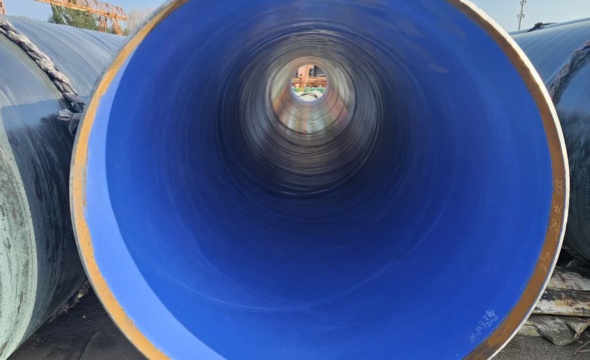

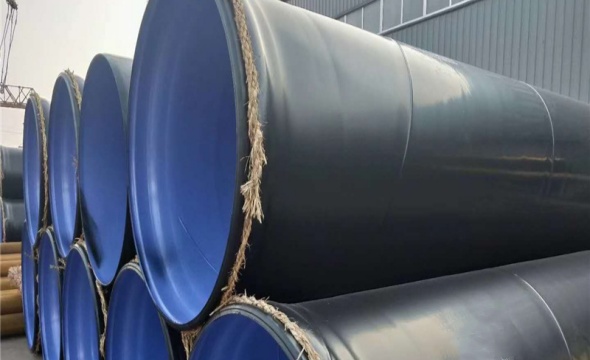

The FBE (Fusion Bonded Epoxy) coating pipeline is a steel pipe protected by a thermosetting epoxy powder layer. When performing, steel pipe is heated to 220-230 ℃, then FBE powder is sprayed on the surface of the pipe by electrostatic adsorption method, and finally the powder will be fused and bonded by heating, and solidified by cooling. This coating provides excellent corrosion resistance, adhesion, and durability. It is widely used in the oil, gas, and water industries for long-distance buried or submerged pipelines.
- Coating Pipeline, FBE & DPS
Fusion Bonded Epoxy(FBE) Pipeline Coating
Email:
sales@imristeel.com
Phone:
+86 13646172523
Quote Now
Product Detail
Chemical Component
Related Products
Product Detail
Product Name:
Fusion Bonded Epoxy(FBE) Pipeline Coating
Standard:
CAN/CSA Z245.20; ISO21809-2
Grade:
/
Thickness:
Single-layer 300-500μm
Shape:
Round
Outer Diameter:
Ф114.3 – 406 mm
Place of Origin:
Inner Mongolia, China
Usage:
Buried/underwater pipelines in normal environments, such as in ordinary soil and water conditions
Surface Treatment:
Hot Rolled
Tolerance:
WT: -12.5%
End:
Plain
End Protector:
HDPE crash cap or customized
length:
R1, R2, R3
Brand:
Baotou steel
Delivery Time:
Normally within 30-45 days and according to the quantity.
Production test requirements-Acceptance criteria
| Production test requirements-Acceptance criteria | ||||
| Test item | Test type | System 1A | System 1B | Standard |
| Cure-∆Tg | B | ≤5℃ | ≤5℃ | CSA Z245.20 |
| 24h cathodic disbondment at 65℃ | A | 11.5mm(maximum radius) | 11.5mm(maximum radius) | |
| Interface contamination | B | 30% maximum | 30% maximum | |
| Cross-section porosity | B | Rating of 1-4 | Rating of 1-4 | |
| Interface porosity | B | Rating of 1-4 | Rating of 1-4 | |
| 1.5℃ flexibility | A | – | No cracking | |
| 2.5℃ flexibility | A | No cracking | – | |
| 1.5J impact resistance | A | No holidays | No holidays | |
| 24h adhesion at 75℃ | A | Rating of 1-3 | – | |
| 24h adhesion at 95℃ | A | – | Rating of 1-3 | |
| Performance | ||
| Test item | Acceptable indicators | Standard |
| Curing time | Meet the specified indicators | CSA Z245.20 |
| Gel time | Within ±20% of the specified gel time | |
| Humidity Ratio | Maximum 0.5% Maximum 0.6% | |
| Particle size distribution | maximum retention on the 150μm sieve is 3.0% maximum retention on the 250μm sieve is 0.2% | |
| Density | Within 50g/L | |
| Thermal characteristics | Meet the requirements of the suppler | |
