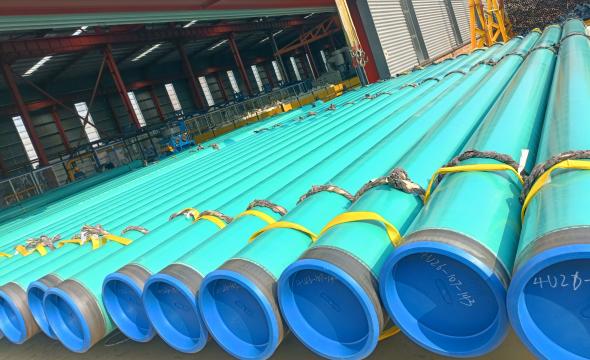

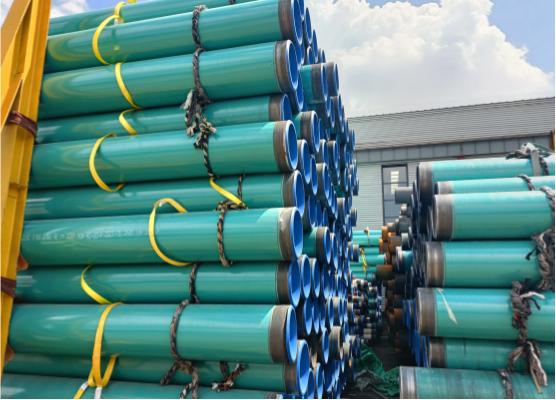

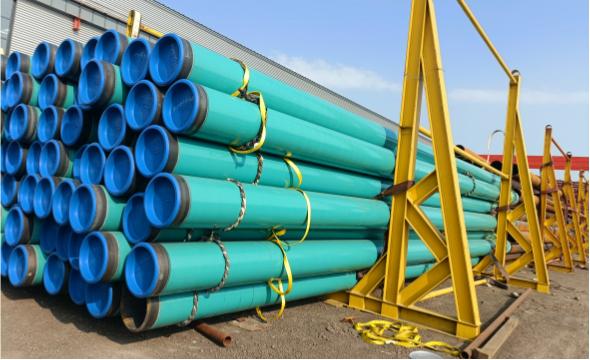

Single & Double Layer FBE Coated Steel Pipe

Single & Double Layer FBE Coated Steel Pipe

FBE coated steel pipe adopts advanced thermosetting epoxy powder coating technology, specializing in solving complex pipeline corrosion problems in harsh industrial and geological environments. As a solvent-free solid powder anti-corrosion system, it avoids the defects of traditional coating such as uneven film formation and residual pores. After high-temperature curing, the coating fuses closely with the steel pipe surface to form a thin, compact and high-adhesion protective layer without delamination or gaps.
Boasting outstanding chemical stability and excellent mechanical adaptability, FBE coating can effectively resist long-term erosion from various corrosive media including industrial wastewater, saline soil and chemical reagents. It features great flexibility and stress resistance, capable of adapting to pipeline thermal expansion and contraction, foundation settlement and construction extrusion. The coating will not crack or fall off under normal construction and service conditions, ensuring continuous and reliable anti-corrosion protection.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now
Product Detail
Technical Performance Parameters
Related Products

Product Detail

Product Name:
FBE Coated Steel Pipe | Fusion Bonded Epoxy Anti-Corrosion Pipe
Standard:
ISO 21809-2, AWWA C213, CAN/CSA Z245.20, NACE SP0394, DIN 30670
Grade:
/
Thickness:
Single-layer 300-500μm;Double-layer 600μm – 1000μm
Shape:
Round
Outer Diameter:
Ф114.3 – 406 mm
Place of Origin:
Inner Mongolia, China
Usage:
Cost-effective, stable performance, suitable for conventional oil, gas and water transmission pipelines
Surface Treatment:
Hot Rolled
Tolerance:
WT: -12.5%
End:
Plain
End Protector:
HDPE crash cap or customized
length:
R1, R2, R3
Brand:
Baotou steel
Delivery Time:
Normally within 30-45 days and according to the quantity.

Technical Performance Parameters

Performance ItemStandard Result
Adhesion Strength≥ 5MPa
Dielectric StrengthHigh insulation, no electric leakage
Cathodic Disbonding ResistanceExcellent, minimal stripping radius
Continuous Service Temperature-40°C ~ 110°C
Water Absorption RateUltra-low, effectively isolating moisture

Core Advantages of FBE Coating

Strong Adhesion: Molecular fusion bonding, no peeling, no hollowing, long service life

Excellent Anti-Corrosion Performance: Resists acid, alkali, salt water and soil corrosion

High Insulation: Low cathodic protection current consumption, saving project operation cost

Wide Temperature Adaptability: Service range from -40°C to 110°C

Environmentally Friendly: No solvent volatilization, non-toxic, compliant with international environmental standards

Uniform & Compact Layer: No pinholes, complete coverage even on weld seams



Production Process

Strict production flow guarantees stable coating quality: Steel pipe surface shot blasting & cleaning → Precisely preheating to 200–250°C → Electrostatic epoxy powder spraying → High-temperature fusion curing → Cooling & surface inspection → Thickness testing → Holiday detection → Finished product packaging.



Application Scenarios

Onshore & offshore crude oil and natural gas transmission pipelines

Urban water supply, drainage and reclaimed water pipeline projects

Chemical plant corrosive fluid transportation pipelines

Power plant, mining and industrial buried pipeline systems

High-temperature medium transmission and long-distance buried pipeline projects
