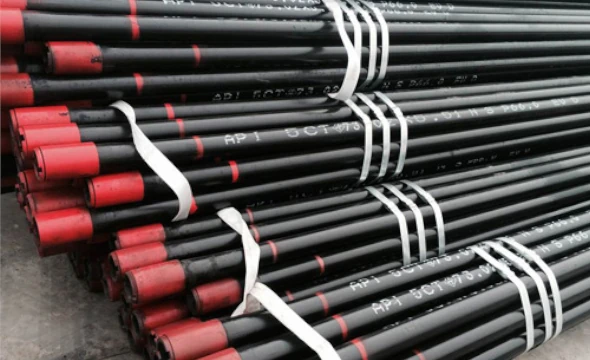

API 5CT N80-1 Tubing Pipe With LTC Thread

IMRI’s N80-1 tubing is certified to API 5CT. The LTC thread provides enhanced gas-tight integrity, enabling metal-to-metal sealing at internal pressures above 8,500 psi, ideal for hydrogen-containing wells and hydraulic fracturing operations

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Chemical Component

Product Detail

Product Name:

API 5CT N80-1 Tubing Pipe With LTC Thread

Standard:

API 5CT / API 5B

Grade:

N80-1

Thickness:

3.5-60mm

Shape:

Round

Outer Diameter:

Ф 60.3-114.3 mm

Place of Origin:

Inner Mongolia, China

Usage:

Transportation of oil and gas

Surface Treatment:

Hot Rolled

Tolerance:

WT: -12.5％ OD:< 4 1/2 ±0.79 mm ;≥ 4 1/2 +1%D ～ -0.5%D

End:

Plain

End Protector:

HDPE crash cap or customized

length:

R1, R2, R3

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Chemical Component(API 5CT)

Grade

Min

Max

Min

Max

Min

Max

Min

Max

N80-1

一

0.030

一

Mechanical Property(API 5CT)

Grade

Total under load

Elongation

Yield strength

megapascal

Tensile strength

megapascal

Hardness a, C

Maximum

Specified

Allowable hardness

Variation

Min

Max

Min

HRC

HBW

HRC

N80

0.5

552

758

689

–

Case:

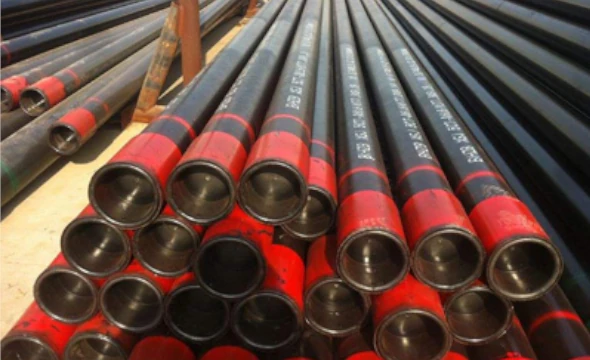

IMRI’s N80-1 tubing is designed for high production wells/deep well gas lift, with pressure ≤70MPa, temperature resistance of 180℃, and high production efficiency in non-acidic environment with H₂S≤5ppm. It has been proved in Sichuan shale gas wells (Φ73mm), Changqing 5,000m deep wells and Sahara gas injection wells in Egypt (180℃ nano-coating anti-corrosion), and has passed API 5CT and ISO 13679 certifications.
