P65/R65 Fish Plate

Fittings

P65/R65 Fish Plate

P65 Fish Plate is a metal plate used to join adjacent railroad tracks, also known as railroad joint plate or fishtail plate. It is usually made of carbon steel and conforms to GOST and EN standards.The P65 fish plate can be customized according to customer’s drawings and mechanical requirements. This component is used to join two sections of railroad track together and is commonly used on railroad tracks.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Packaging & Delivery

Product Detail

Rail Joint For Light Rail
Rail Size(kg/m)	Main dimension(mm)				Theoretical Weight(kg/piece)
Rail Size(kg/m)	Length	Width	Holt Diameter	Holt Count	Theoretical Weight(kg/piece)
9	385	43.13	14	4	0.81
12	409	46.5	14	4	1.39
15	409	53.54	18	4	2.2
22	510	61.73	22	4	3.8
30	561	71.48	22	4	5.54

Rail Joint For Heavy Rail
Rail Size(kg/m)	Main dimension(mm)				Theoretical Weight(kg/piece)
Rail Size(kg/m)	Length	Width	Holt Diameter	Holt Count	Theoretical Weight(kg/piece)
38,43	790	94.03	40	6	15.57
50	820	104.22	46	6	18.72

Standard	Type	Length/Diameter	Weight/Material
AREMA	115RE	4 holes-24”	17.04kg
	115RE	6 holes-36″	25.56kg
	132RE-136RE	4 holes-24″	17.75kg
	132RE-136RE	6 holes-36”	26.63kg

Technical Detail

GOST P65 rail fish plate (joint bar) is used to connect to two adjacent rail sections.

Specifications:

Material: 50# & 55#

Holes: 4 holes & 6 holes

Standard: TB/T 2345-2008,GOST

Material:P65 fish plates are commonly made from medium or high carbon steel, though other materials like nodular cast iron can also be used.

Dimensions:The dimensions of the fish plate must precisely match the rail profile it is connecting.

Bolt Holes:Fish plates usually have 4 or 6 bolt holes to secure the connection.

Tensile Strength:The minimum ultimate tensile strength (UTS) of a fish plate is typically between 57 to 68 kg/mm², according to a rail engineering study material.

Standards:P65 fish plates often comply with standards like GOST or EN.

Function:

Connects two rail ends, creating a continuous track.

Allows for expansion and contraction of rails due to temperature changes.

Maintains proper rail alignment and prevents derailments.

Facilitates rail replacement in case of wear or damage.

Packaging & Delivery

Packaging Details:

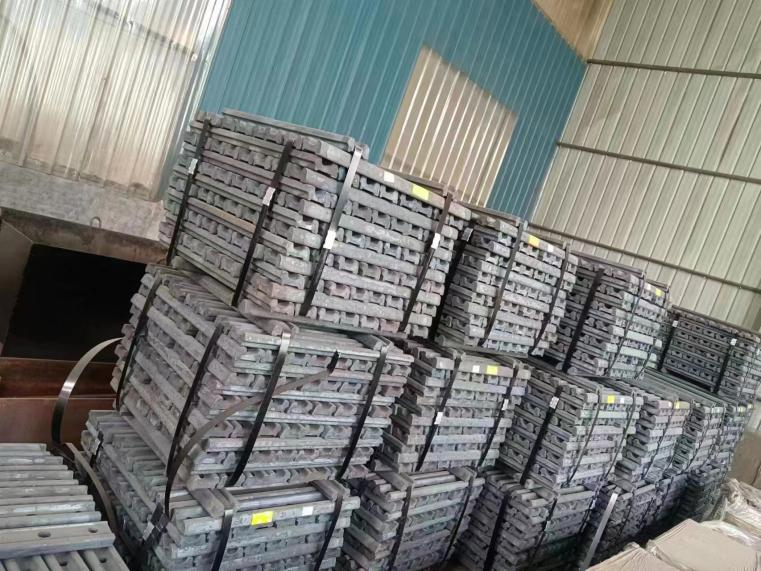

Bundles wrapped with strong steel trips, or according to customers’ requirements. We will pack the rail fish plate in bundle by steel wire or according to customer’s requirement, and after loading the container, it will be reinforced.
Port: Tianjin Port
Lead Time: Within 20-30 days depends on the order quantity

Packaging & Shipping:

· Minimum order quantity: 50tons
· Price: FOB at Xin’gang port in Tianjin or CFR/CIF
· Payment: 30% deposit in advance, the balance against the copy of B/L; or 100% L/C, etc

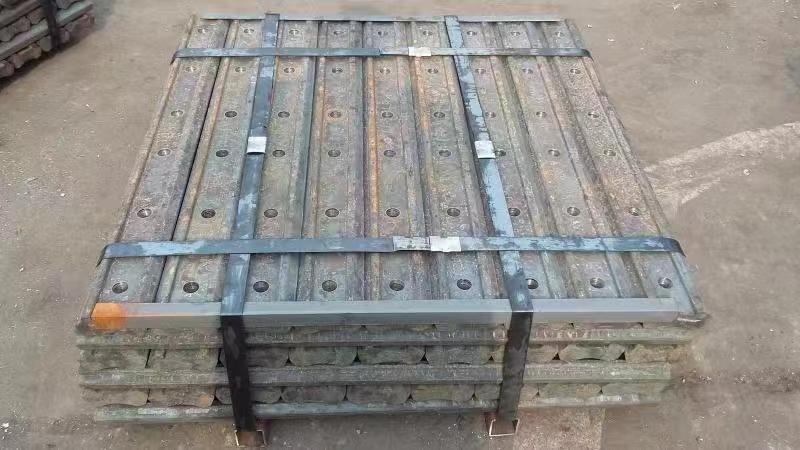

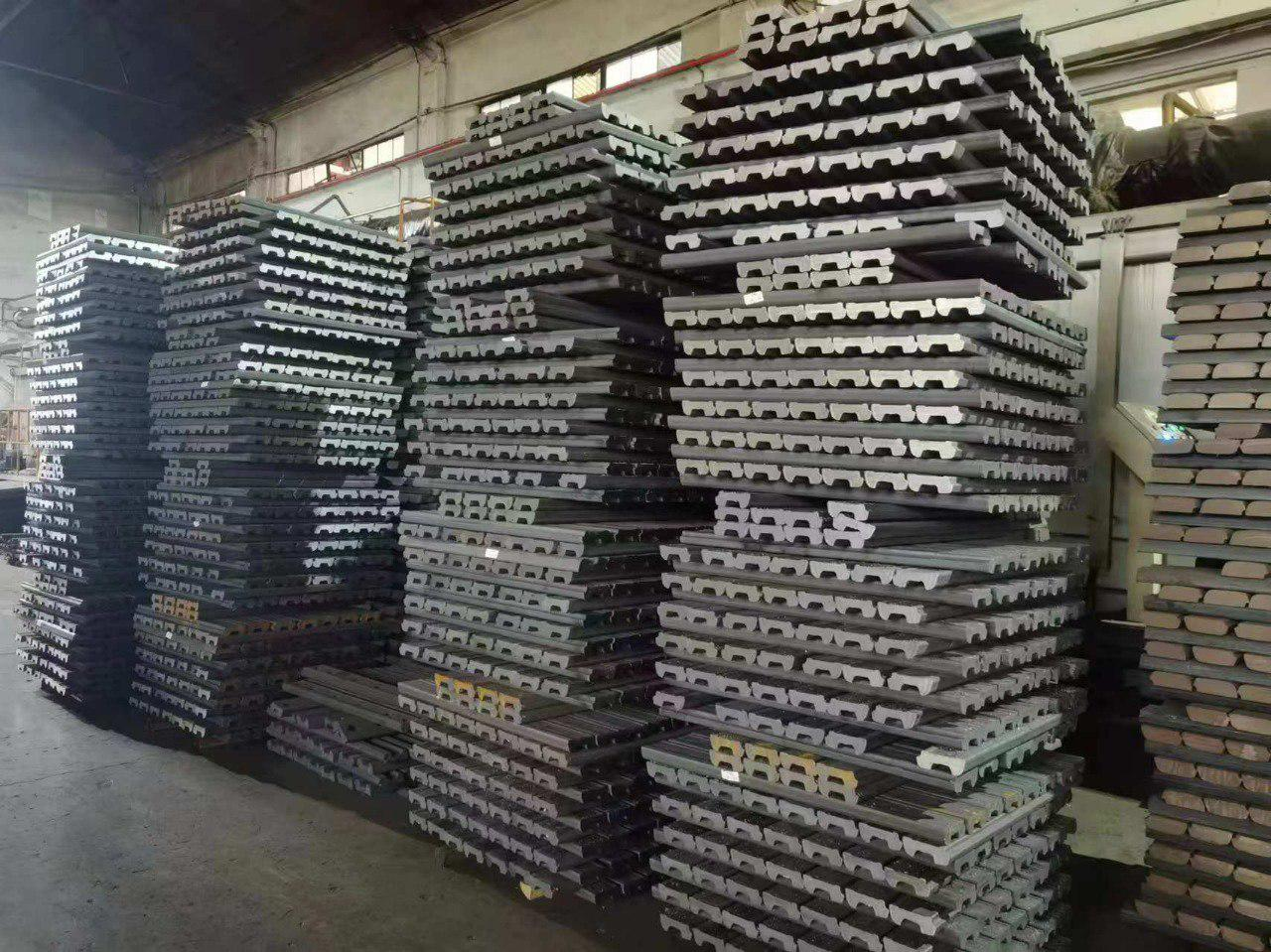

· Packing: Standard seaworthy packing or as per your request .(as pictures)
· Sample: Free sample is available.
