Heavy Rail of 54E1/UIC54 Rails

UIC54 rails, also known as 54E1 rails, are a type of steel rail widely used in railway construction according to the European standard EN 13674-1. These rails are flat-bottomed and weigh 54.77 kg per meter. They are commonly used for standard tracks in areas with medium and heavy traffic.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Packaging & Delivery

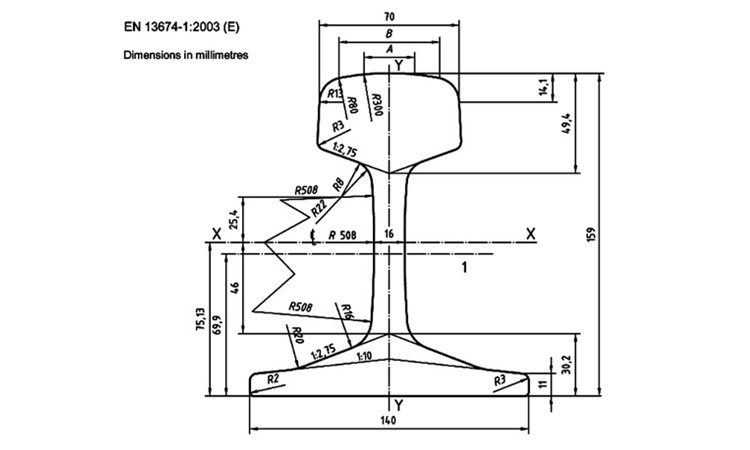

Drawing and Size Tolerance

Tolerance of 54E1 Rail Type (mm)
Head width	±0.5
Foot width	+1.0,-0.5
Web thickness	+0.8,-0.5
Rail height	±0.8
Point height	+1.0,-0.5
Web height	+0.3,-0.7
Deviation of tread shape from nominal shape (along the symmetry axis)	±0.5
Convexity of foot (uniform)	0.5
Concavity of foot	Not allowed
Profile deviation from symmetry (asymmetry)	±1.3
Permitted deviation from rail length, mm	±20

Chemistry Component

C	Si	Mn	P	S	Cr	V	AL	Other elements
0.55-0.75	0.15-0.60	1.30-1.70	≤0.025	≤0.025	—	—	—	0.20
Note: Residual and tolerance of chemical component of finished rail according to R260

Mechanical Properties

Rail

Tensile strength,

N/mm²

Yield point,

N/mm²

UIC60

≥880

≥420

260

Mark

Other Notable Features:

Standard: UIC 54 rails conform to the European standard EN 13674-1.

Weight: They have a mass of 54.77 kg per meter.

Applications: UIC 54 rails are commonly used for standard track in railway construction, especially for medium and heavy load traffic.

Versatility: They can be found in various railway applications, including high-speed lines, freight networks, and more.

Durability: Made with high-quality materials and often equipped with corrosion-resistant coatings, UIC 54 rails offer good durability and a long service life.

Performance: Their precision engineering and consistent dimensions contribute to stable and safe rail journeys.

Steel Grades: UIC 54 rails can be made with various steel grades, including R200, R260, R260 MN, and R350 HT, each with specific minimum mechanical properties.

Hardfacing: Methods like hardfacing can be used to increase the hardness and wear resistance of UIC 54 rail heads.

Packaging & Delivery

· Packaging Details: Bundles wrapped with strong steel trips, or according to customers’ requirements.The length of the rail can be selected as 12 meters, 12.5 meters, 18 meters, 24 meters or 25 meters.
· Port: Tianjin Port
· Lead Time: Within 20-30 days depends on the order quantity

Packaging & Shipping

· Minimum order quantity: 500 tons
· Price: FOB at Xin’gang port in Tianjin or CFR/CIF
· Payment: 30% deposit in advance, the balance against the copy of B/L; or 100% L/C, etc

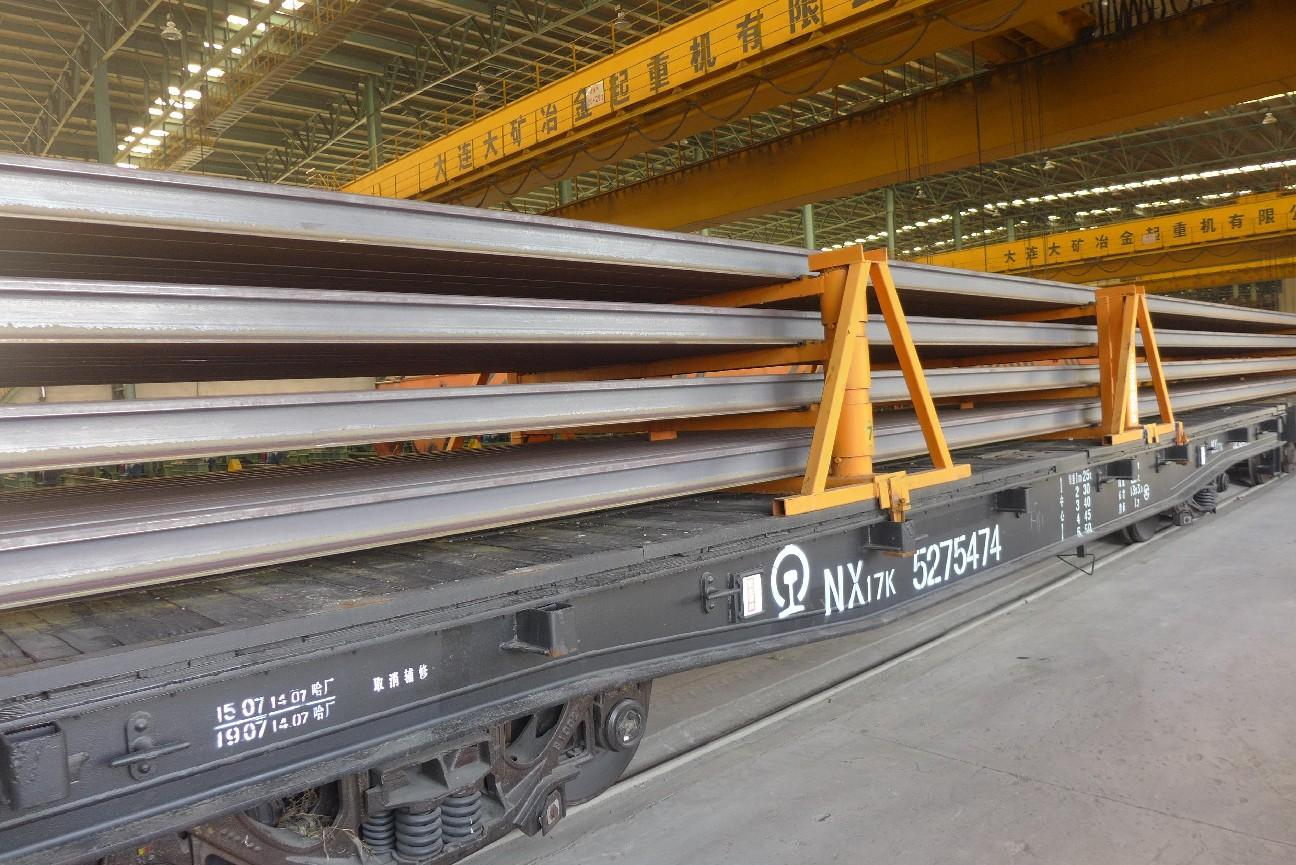

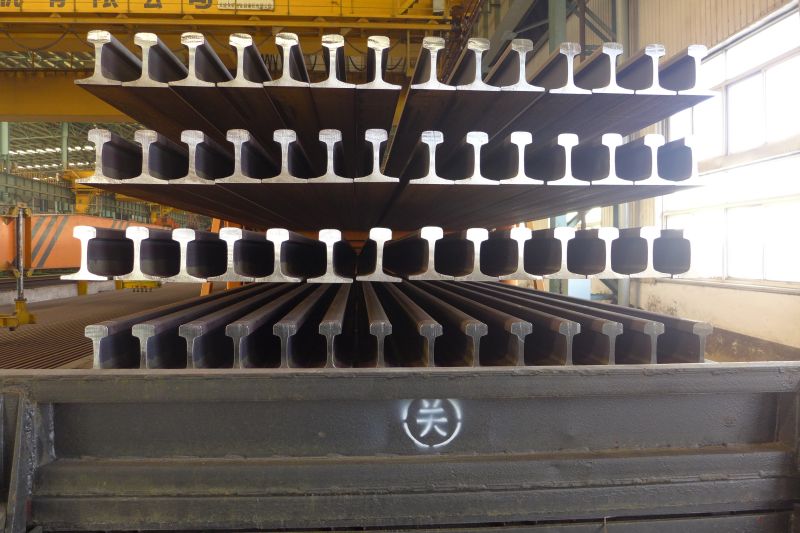

· Packing: Standard seaworthy packing or as per your request .(as pictures)
· Sample: Free sample is available.
