API 5CT C90 OCTG Casing

API 5CT C90 CASING

API 5CT C90 OCTG Casing

Our API 5CT C90 Tubing and Casing represents a premium grade of Oil Country Tubular Goods (OCTG) engineered for exceptional performance in demanding oil and gas operations. Specifically designed to meet the stringent requirements of API Specification 5CT, C90 grade delivers superior mechanical strength and outstanding resistance to sulfide stress cracking (SSC) in sour environments containing hydrogen sulfide (H2S)

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now
Product Detail
Chemical Component
Related Products

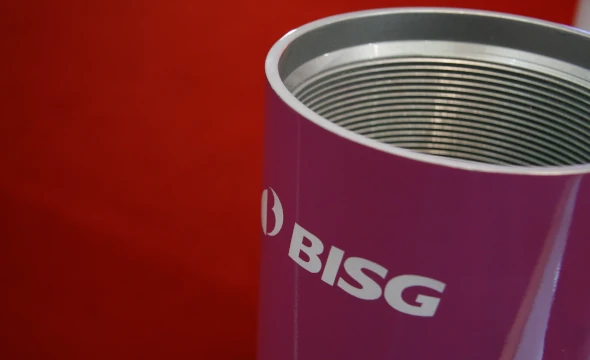

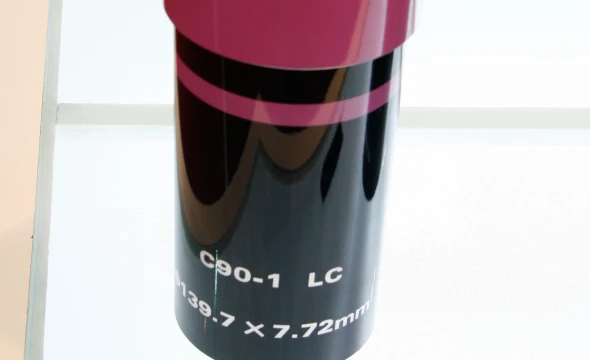

Corrosion Resistant API 5CT C90 PipeBTC THREAD C90 OCTG

Product Detail

Product Name:
API 5CT C90 OCTG Casing
Standard:
API 5CT / API 5B
Grade:
C90
Thickness:
3.5-60mm
Shape:
Round
Outer Diameter:
Ф114.3 – 406 mm
Place of Origin:
Inner Mongolia, China
Usage:
Structural Support; Wellbore Protection
Surface Treatment:
Hot Rolled
Tolerance:
WT: -12.5%
End:
Plain
End Protector:
HDPE crash cap or customized
length:
R1, R2, R3
Brand:
Baotou steel
Delivery Time:
Normally within 30-45 days and according to the quantity.

Chemical Component(API 5CT)

GradeCMnMoCrNiCuPSSi
MinMaxMinMaxMinMaxMinMaxMaxMaxMaxMaxMax
C900.351.200.250.851.500.990.0200.010



Mechanical Property(API 5CT)

GradeTypeTotal under load

Elongation

%

Yield strength

megapascal

Tensile strength

megapascal

Hardness a, C

Maximum

Specified

OD

mm

Allowable hardness

Variation

MinMaxMinHRCHBWHRC
C900.562172468925.4255≤12.703.0
12.71 to
19.04
4.0
19.05 to
25.39
5.0
≥25.406.0

Case:

The proven performance of Baotou steel C90 casing has made it a trusted choice for major domestic projects across China’s key oilfields, including the complex sour reservoirs of the Sichuan Basin and the deep well projects in the Tarim Basin, often serving as critical intermediate casing for leading operators like CNPC and Sinopec. Internationally, our C90 products have been successfully supplied to and deployed in oil and gas projects across the Middle East (for sour gas applications), North America (for unconventional resource development requiring high-strength pipe), and Southeast Asia, establishing our global reputation for quality and durability that meets the stringent requirements of API 5CT and NACE MR0175standards.
