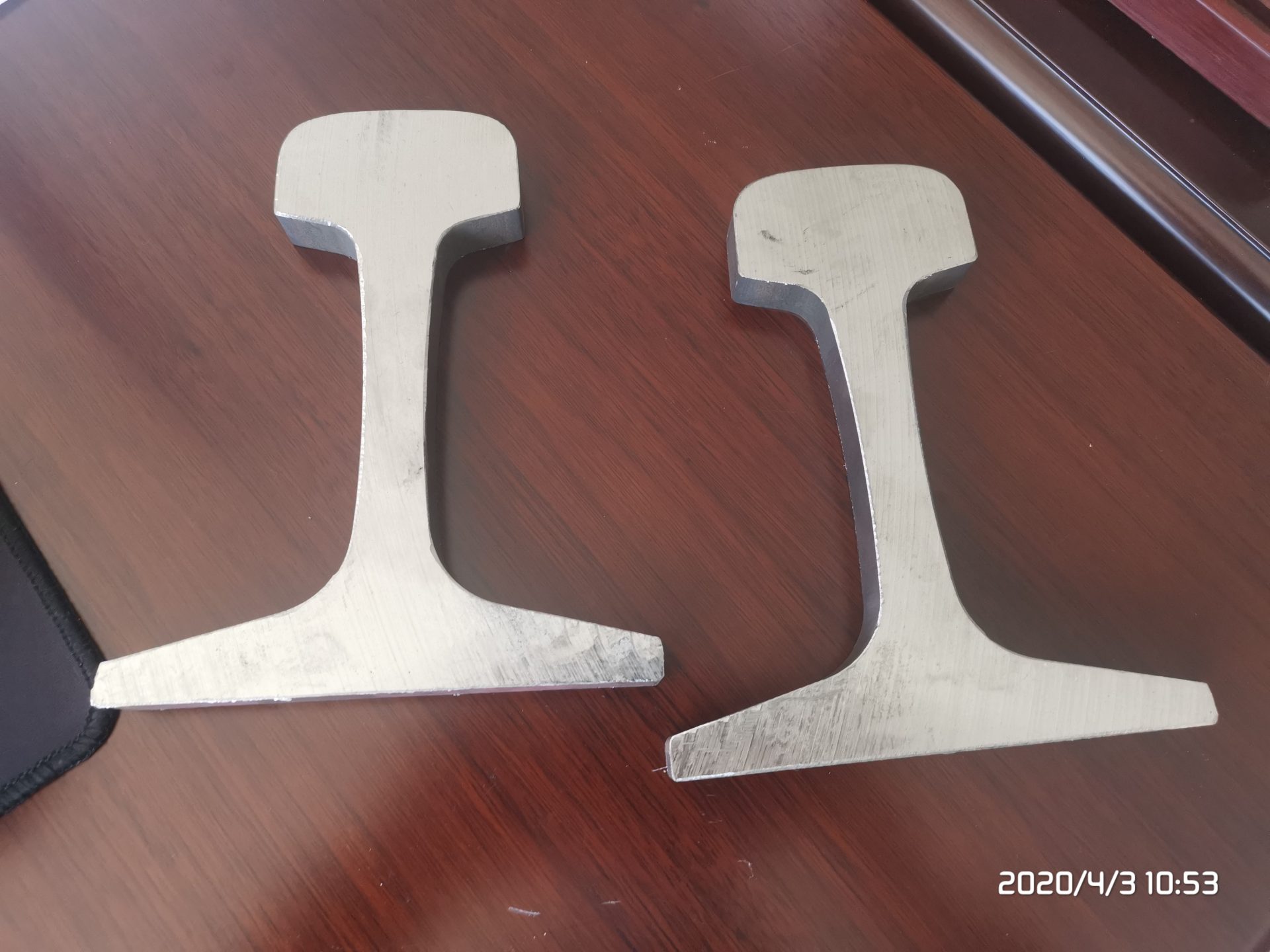

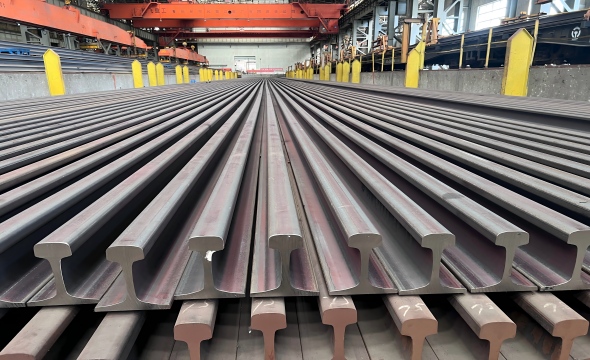

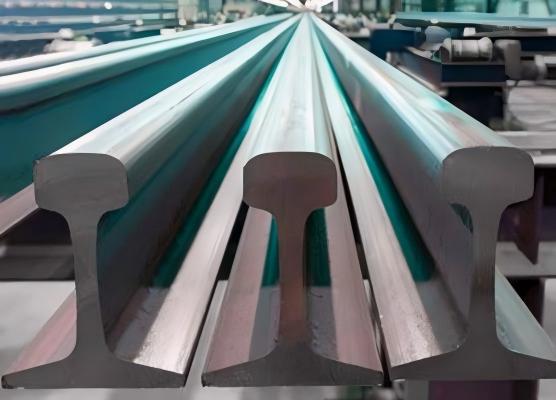

115RE AREMA Standard SS Grade Railway Rail for Global Railroad

115RE AREMA Standard SS Grade Railway Rail for Global Railroad

115RE rail is one of the most widely used standard heavy rails compliant with AREMA 2019 standard, serving as the mainstream rail section for North American, Australian and Latin American railway systems. Converted to metric unit, 115RE rail equals approximately 56.9kg/m. It features stable sectional structure, high structural rigidity and outstanding fatigue resistance, perfectly designed for standard Class I railway lines, passenger-freight mixed traffic and medium-heavy haul railroad projects.

115RE steel rail adopts precisely controlled carbon steel and low-alloy steel smelting technology, providing excellent wear resistance and impact resistance under long-term cyclic load. We supply standard hot-rolled 115RE rails and multiple strength grades including SS, IS and HH head-hardened versions. Complete matching fastener sets and customized processing services are available to support turnkey railway construction projects.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now
Product Detail
Chemical Component
Related Products

Product Standard & Steel Grades

Executive Standard: AREMA 2019 (American Railway Engineering and Maintenance-of-Way Association)

Available Strength Grades for Export:

SS (Standard Strength): Conventional carbon steel grade, balanced toughness and hardness, cost-effective for general main lines and ordinary freight routes.

115RE Rail Technical Dimensions

All dimensional tolerances strictly comply with AREMA official standards to ensure accurate installation and track stability.

Parameter ItemTechnical Data
Nominal Weight115 lb/yd (56.9 kg/m)
Rail Height168.30 mm
Rail Head Width69.10 mm
Rail Base Width139.70 mm
Web Thickness15.90 mm
Standard Length12m / 25m / Custom Cutting

Chemical Composition (AREMA 2019)

Material TypeC (%)Si (%)Mn (%)P Max (%)S Max (%)Cr / Ni (%)
Carbon Steel0.74–0.860.10–0.600.75–1.250.0200.020≤0.30 / ≤0.25
Low Alloy Steel0.72–0.820.10–0.500.80–1.100.0200.0200.25–0.40 / ≤0.15

Mechanical Properties

GradeYield Strength (MPa Min)Tensile Strength (MPa Min)Elongation A (%) MinBrinell Hardness (HBW Min)Feature
SS51198310310Standard strength, cost-effective
IS724106910350Intermediate strength for busy lines
HH828117910370Heat-treated high strength for heavy load

Application Scope

115RE rail is the universal standard rail for American system railway projects, widely adopted in global regions recognizing AREMA standards:

North American Class I mainline railways

Passenger & freight mixed traffic railroad lines

Regional transit and suburban railway projects

Australian, Latin American and African AREMA standard railway upgrades
