When selecting anti-corrosion coatings for steel pipes in Central Asia, the extreme climate of Uzbekistan presents unique challenges. With summer temperatures frequently exceeding 45°C (113°F) and high soil temperatures, choosing between Three-Layer Polyethylene (3PE) and Three-Layer Polypropylene (3PP) is critical for pipeline longevity.
Understanding the Basics

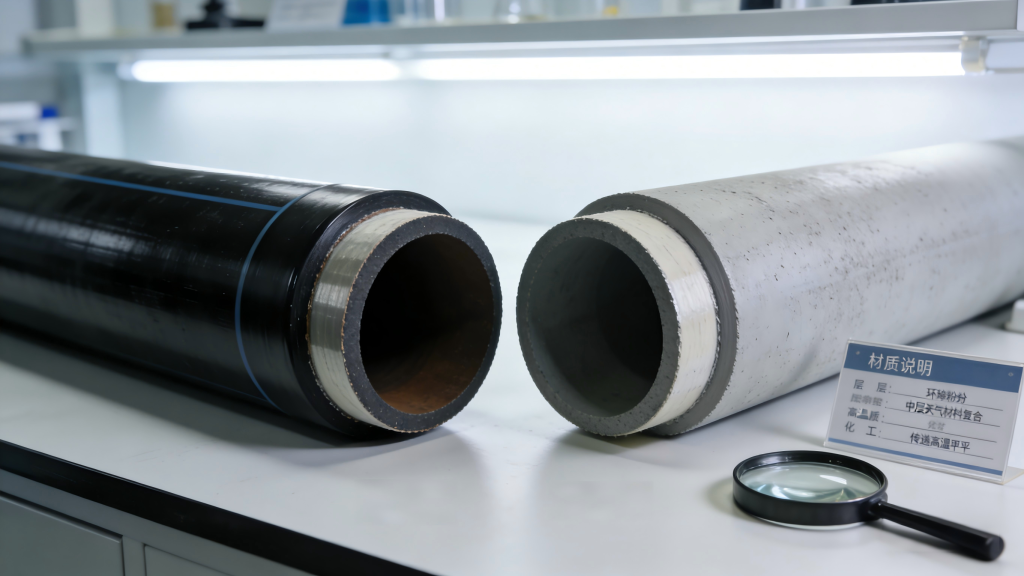

Both systems consist of three layers: a high-performance Fusion Bonded Epoxy (FBE) primer, a copolymer adhesive, and a top layer of either Polyethylene (PE) or Polypropylene (PP).
- 3PE (Three-Layer Polyethylene):The global standard for buried pipelines, known for excellent flexibility and chemical resistance.
- 3PP (Three-Layer Polypropylene):A more robust alternative designed for higher operating temperatures and harsher mechanical environments.
The Comparison: Performance in High Heat
| Feature | 3PE Coating | 3PP Coating |
| Max Operating Temp | Up to 70°C | Up to 110°C |
| Hardness/Strength | Moderate | High (Superior scratch resistance) |
| UV Resistance | Good (with carbon black) | Excellent |
| Flexibility | Excellent (better for cold) | Lower (stiff) |
| Cost | More Economical | Higher |
Why Climate Matters in Uzbekistan
Uzbekistan’s continental climate involves intense solar radiation and significant thermal expansion.
- Softening Point:3PE begins to soften at lower temperatures compared to 3PP. In the Uzbek desert, where surface temperatures of pipes stored above ground can reach 70°C+, 3PE may become vulnerable to “tenting” or mechanical damage during installation.
- Mechanical Protection:3PP is significantly harder. It offers better protection against rocky soils and abrasive backfill materials common in the region’s diverse terrain.
- Heat Aging:3PP maintains its physical properties longer when exposed to the high-temperature cycles typical of the Tashkent or Navoi regions.
The Verdict: Which is Better?
- Choose 3PP if:The pipeline carries hot fluids, or if the pipes will be exposed to extreme ambient heat for long periods before burial. It is the “premium” choice for maximum durability in desert conditions.
- Choose 3PE if:The project is budget-sensitive and the pipes are buried deep where soil temperatures remain stable below 50°C. 3PE remains the most widely used solution due to its balance of cost and performance.
- Conclusion:For the specific high-heat demands of Uzbekistan, 3PP is technically superior due to its higher thermal threshold, though 3PE is sufficient for many standard buried applications.
