Polyurethane Insulation Material

Polyurethane Insulation Material

Polyurethane Insulation Material

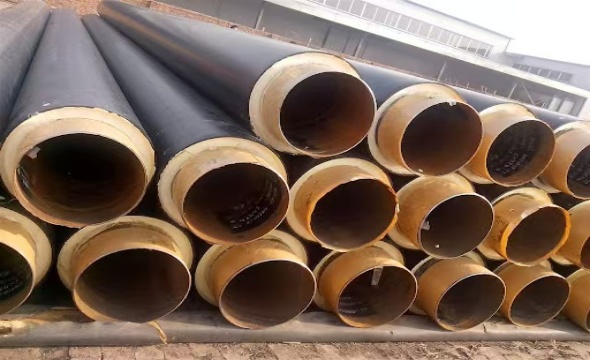

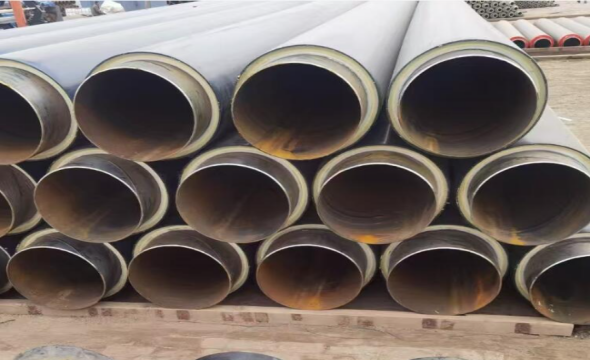

Polyurethane (PU) Insulation Material is a rigid foam produce by the reaction of isocyanate and polyol, serving as the core component of prefabricated directly buried insulated pipes. It features extremely low thermal conductivity, minimizing heat loss or gain in pipeline systems. The material is inject between the central steel pipe and the outer polyethylene casing in the factory, where it foams to form a continuous, seamless, and tightly bonded insulation layer. It offers excellent thermal performance, high mechanical strength, and good waterproofing. It is the ideal choice for district heating & cooling networks and insulated oil pipelines.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now
Product Detail
Performance Requirements
Related Products

Polyurethane Insulation MaterialPolyurethane Insulation Material

Product Detail

Product Name:
Polyurethane Insulation Material
Standard:
EN 253, CJ/T 114, CJ/T 155, ASTM C963
Type:
Rigid Polyurethane Foam
Density:
60-80 kg/m³
Shape:
Cylindrical foam layer
Size:
Customized according to the dimensions of the carrier pipe and HDPE casing
Place of Origin:
Inner Mongolia, China
Usage:
Prefabricated directly buried pipes for district heating, district cooling, insulated oil pipelines
Thermal Conductivity:
≤0.033 W/(m·K) (at 50°C)
Compressive Strength:
≥0.3 MPa
Closed Cell Content:
≥90%
End Protector:
HDPE crash cap or customized
length:
6-12m
Brand:
Baotou steel
Delivery Time:
Normally within 30-45 days and according to the quantity.

Performance Requirements

No.ItemSpecificationTestMethod
1Minimum Core Density (kg/m³)≥60GB/T 6343
2Average Density (kg/m³)≥70GB/T 6343
3Closed Cell Rate (%)≥90GB/T 10799
4Radial Compressive Strength (MPa)≥0.3GB/T 8813
5Radial Average Pore Diameter (mm)≤0.5GB/T 12811
6Water Absorption (%) (Atmospheric Pressure, 100℃, 90 mins)≤8CJ/T 114
7Thermal Conductivity at 50℃ (W/(m·K))≤0.033CJ/T 114
8*Heat ResistanceDimensional Change Rate (%)≤3GB/T50538-2010
Weight Change Rate (%)≤2
Strength Change Rate (%)≥5
