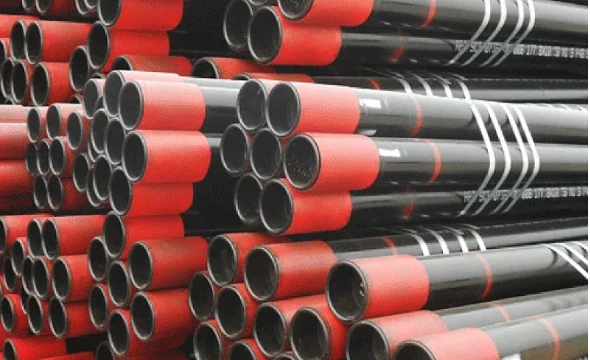

API 5CT N80-1 for High-Pressure Isolation

Casing

API 5CT N80-1 for High-Pressure Isolation

IMRI’s API 5CT Grade N80 Type 1 meets the mechanical property requirements of Chapter 8 of the standard: yield strength of 552-758 MPa and tensile strength of ≥689 MPa. It is suitable for non-sour environments at well depths of ≤5,500 m. It has passed the verification of internal pressure strength of ISO 11960 and the certification of geometric accuracy of the threads of API 5B, and is specially designed for the casing columns of the shale gas-fracturing well technology.

Email:

sales@imristeel.com

Phone:

+86 13646172523

Quote Now

Product Detail

Chemical Component

Product Detail

Product Name:

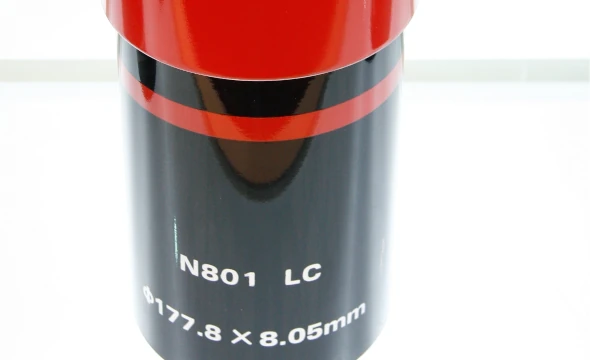

API 5CT N80-1 for High-Pressure Isolation

Standard:

API 5CT / API 5B

Grade:

N80-1

Thickness:

3.5-60mm

Shape:

Round

Outer Diameter:

Ф114.3 – 406 mm

Place of Origin:

Inner Mongolia, China

Usage:

Structural Support; Wellbore Protection

Surface Treatment:

Hot Rolled

Tolerance:

WT: -12.5% / +15%

End:

Plain

End Protector:

HDPE crash cap or customized

length:

R1, R2, R3

Brand:

Baotou steel

Delivery Time:

Normally within 30-45 days and according to the quantity.

Chemical Component(API 5CT)

Grade

Min

Max

Min

Max

Min

Max

Min

Max

N80-1

一

0.030

一

Mechanical Property(API 5CT)

Grade

Type

Totalunder load

Elongation

Yield strength

megapascal

Tensile strength

megapascal

Hardness a, C

Maximum

Specified

Allowable hardness

Variation

Min

Max

Min

HRC

HBW

HRC

N80

0.5

552

758

689

–

Case:

Our K55 casing is used in three core applications: 1) high-pressure layer sealing in deep wells (API TR 5C3 anti-extrusion certification for non-acidic environments of ≤5500m); 2) shale gas fracking wells technical casing; and 3) high-temperature steam injection wells. Successfully supported the drilling of salt paste layer in the ultra-deep oil and gas field in Tarim(Φ339.7mm) , China, shale gas development in Sichuan Basin. And participated in the project of low-pressure gas field in the western desert of Egypt (H₂S ≤ 50ppm working condition).
